The Totem Puck Story

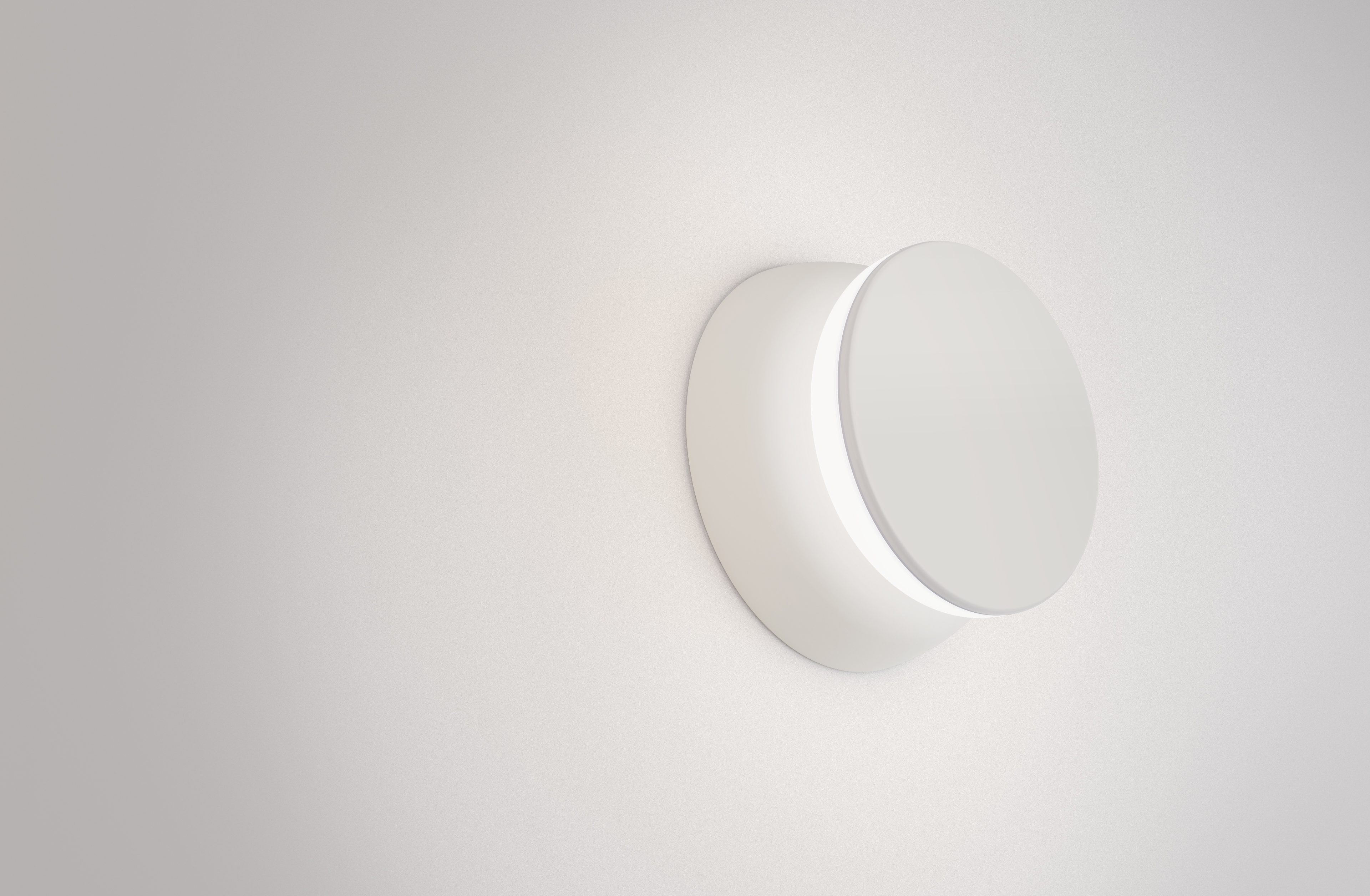

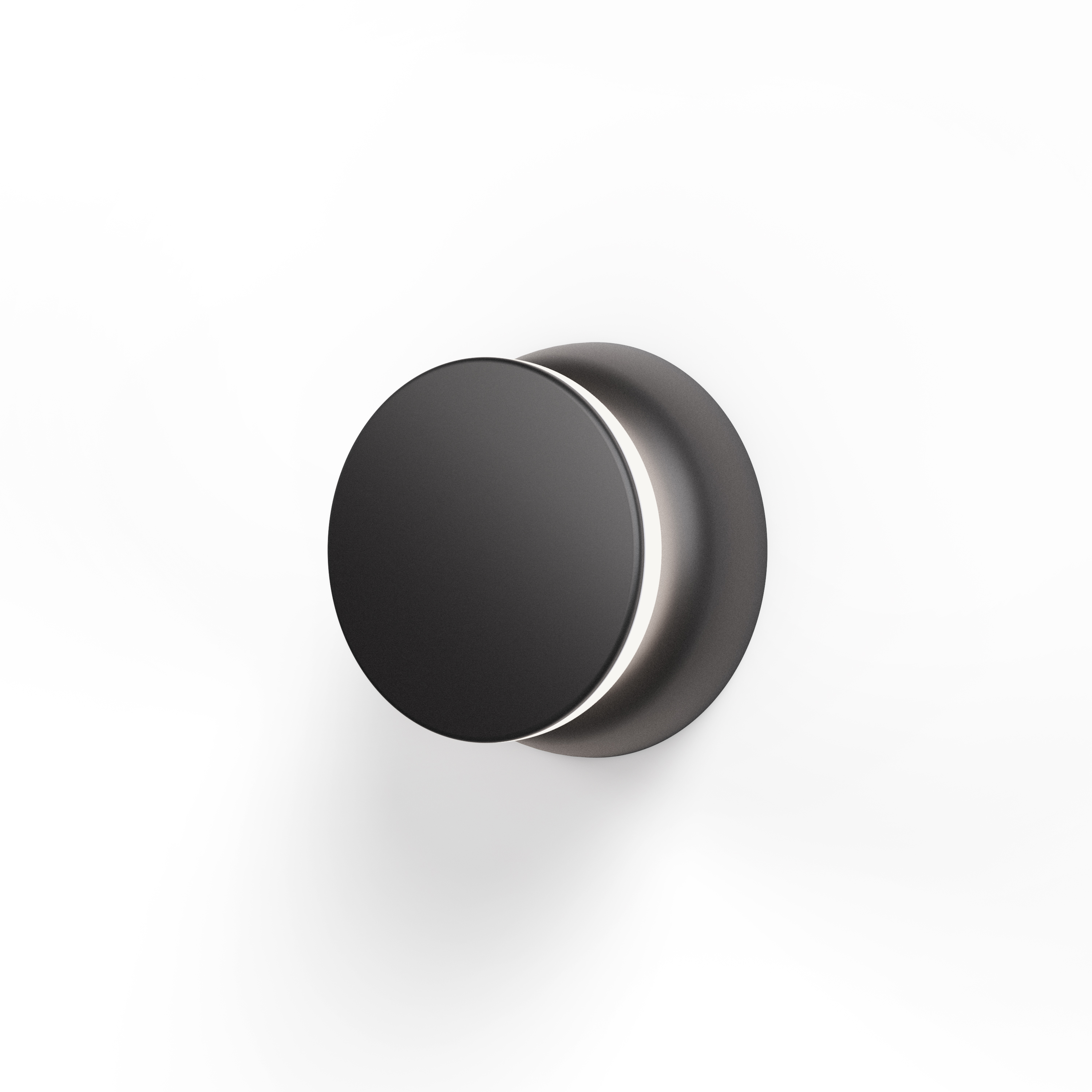

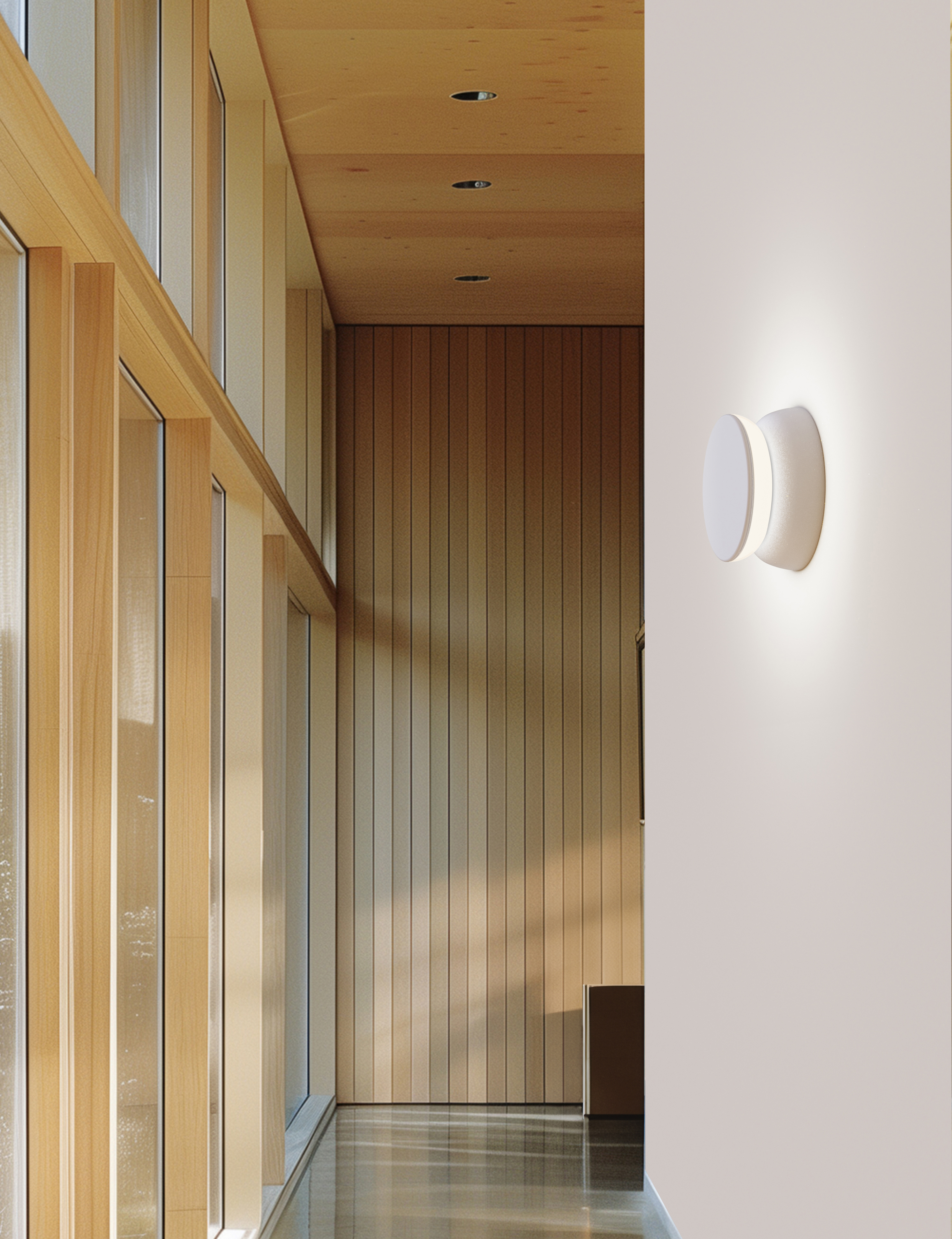

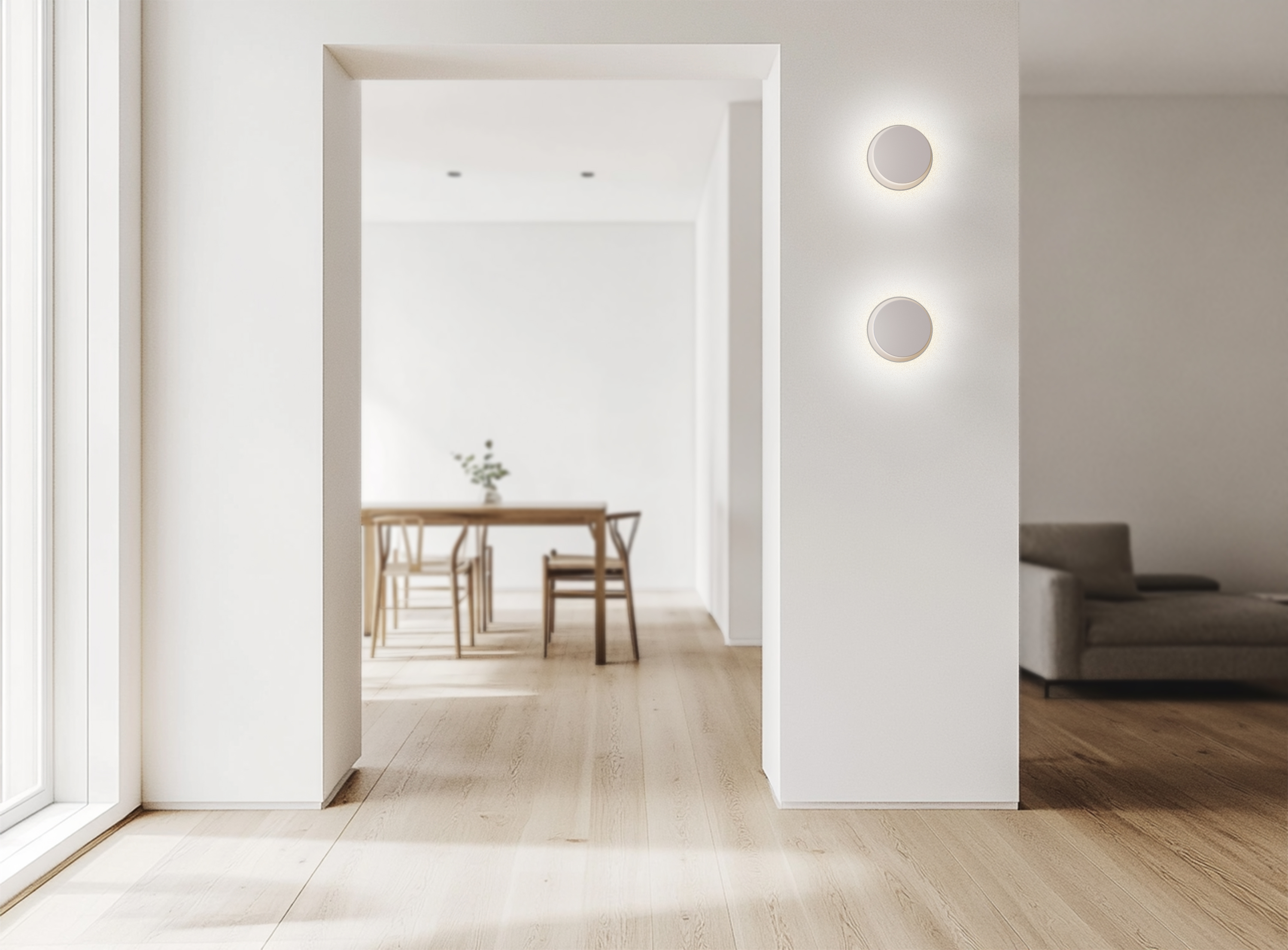

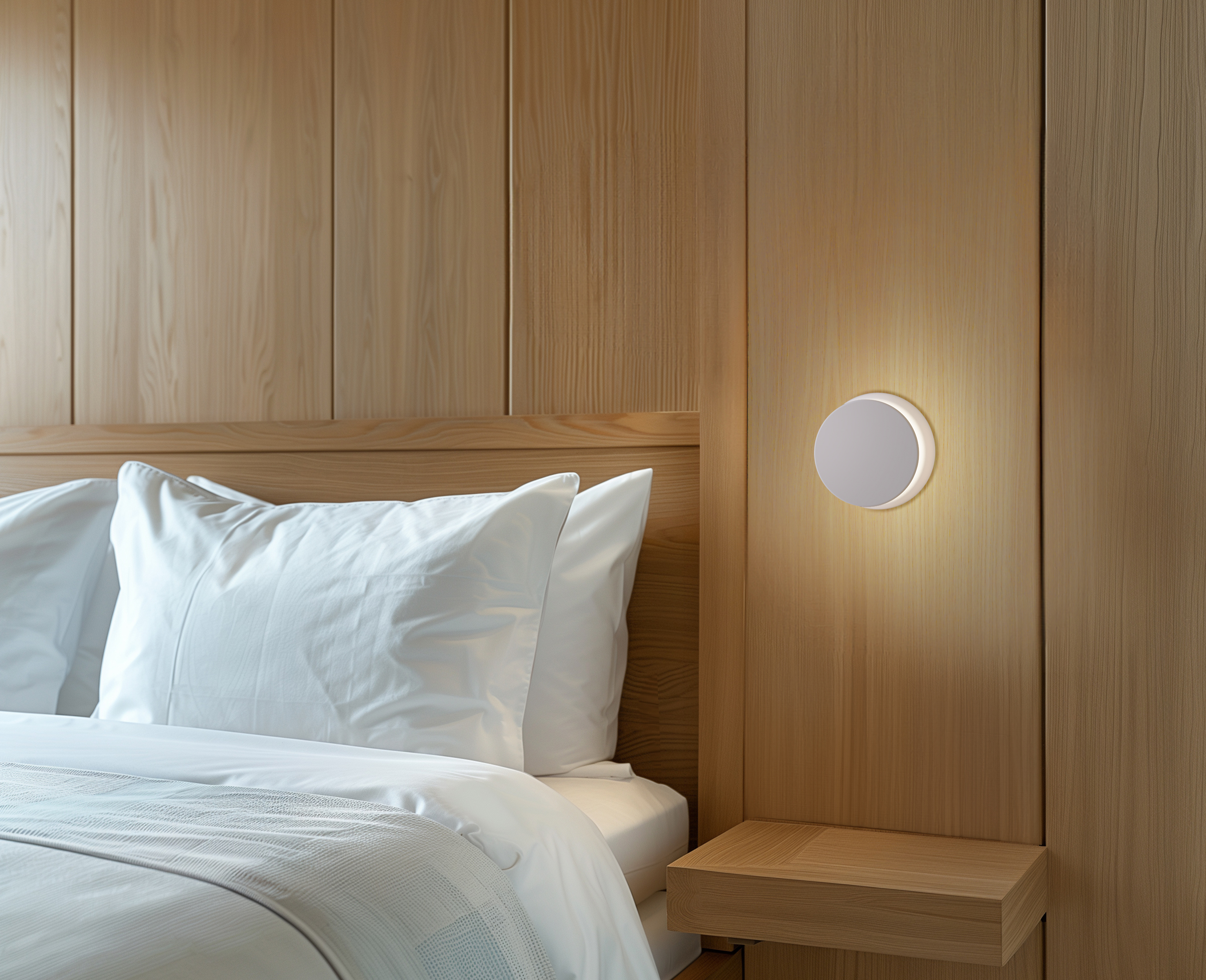

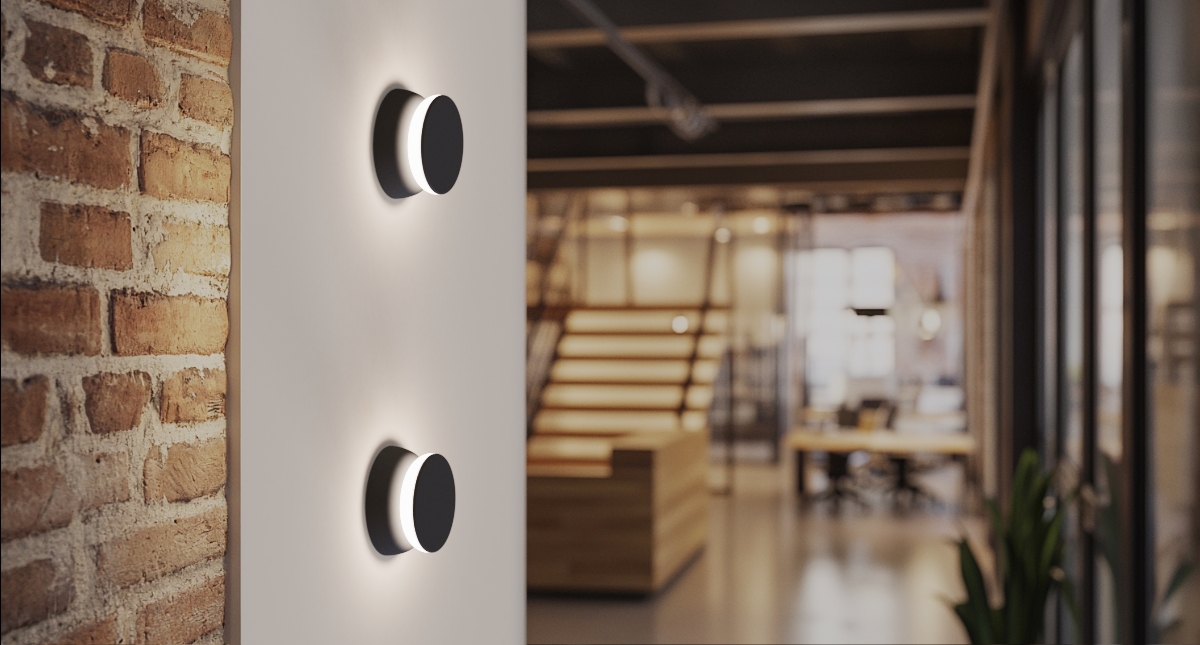

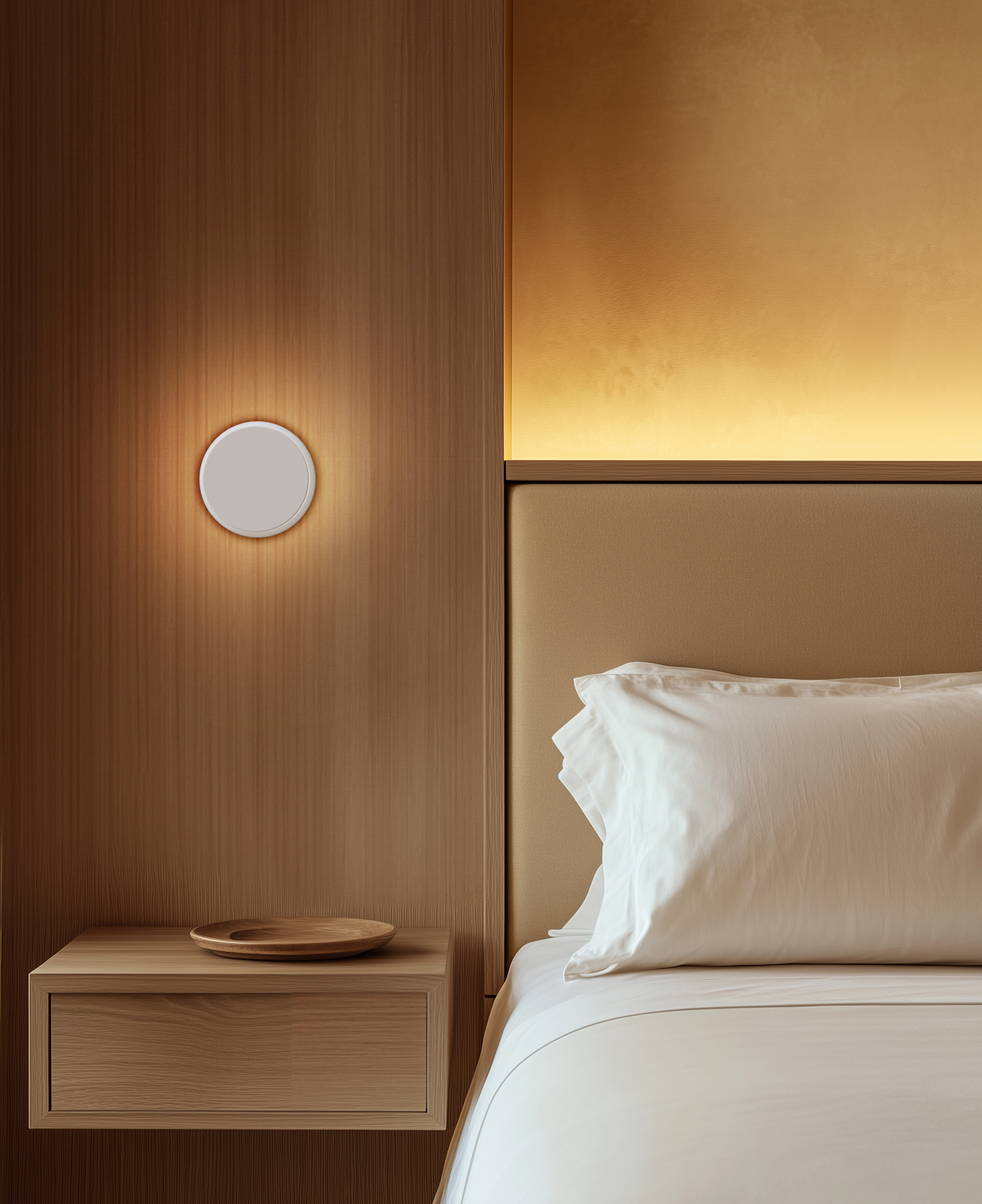

Totem Puck takes its elegant undulating form from its pendant and table counterparts and seamlessly ushers a captivating light unto any wall or ceiling. This compact and versatile luminaire features glare-free illumination with field-selectable CCT LED (2700K / 3000K / 3500K) and is available in Matte White, Dove Gray and Black. For a premium touch, faceplates in Walnut Essence and Brass are available to complement the base finishes. Ideal for lining hallway corridors or providing soft indirect illumination for modern living areas, bathrooms, and bedrooms. Totem Puck is also available with add-on glass diffusers. Totem Wall’s modular design is ADA compliant and ideal for lining corridors, living areas and bedroom spaces for hospitality and residential spaces alike. See Totem Sconce.

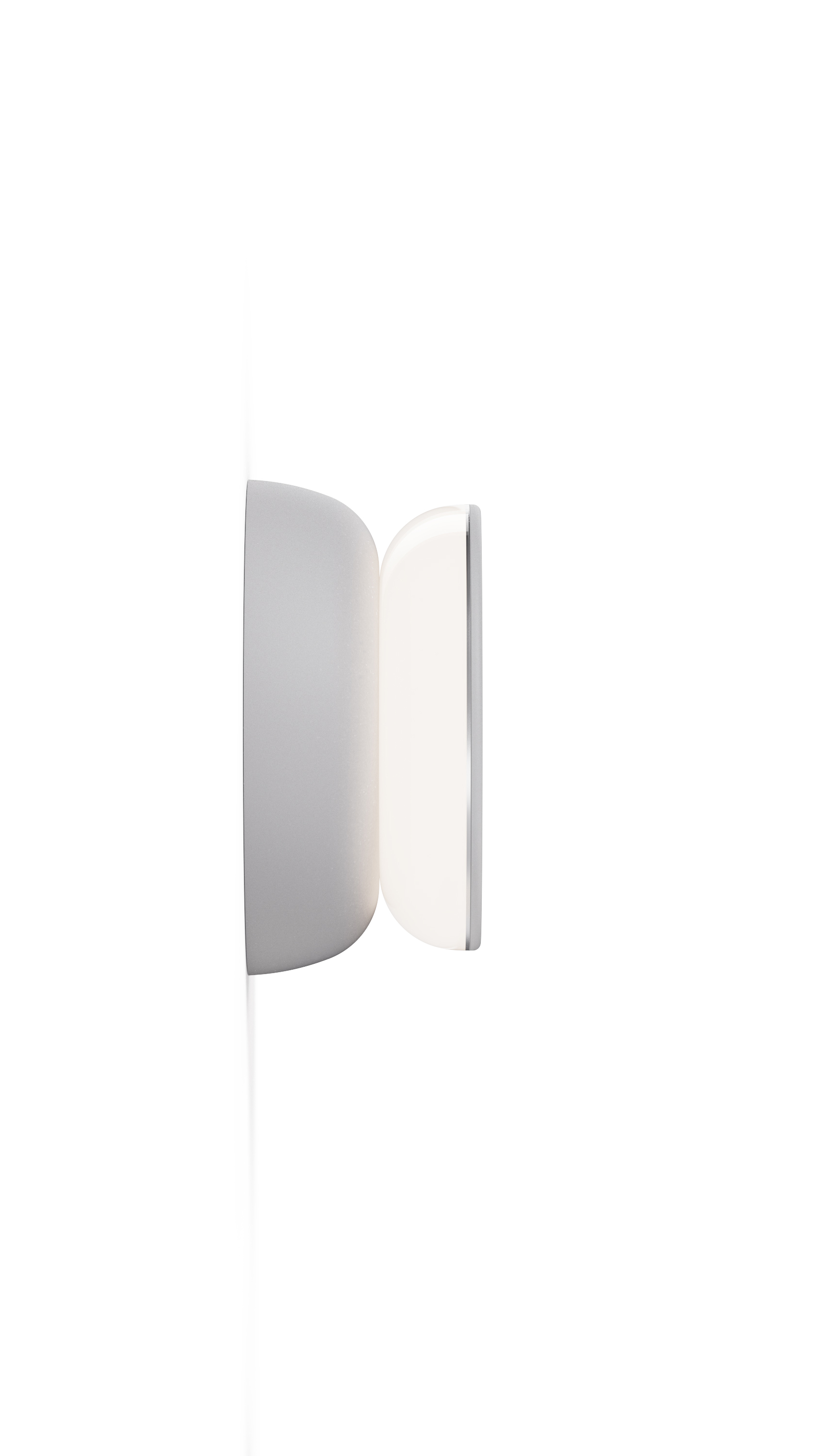

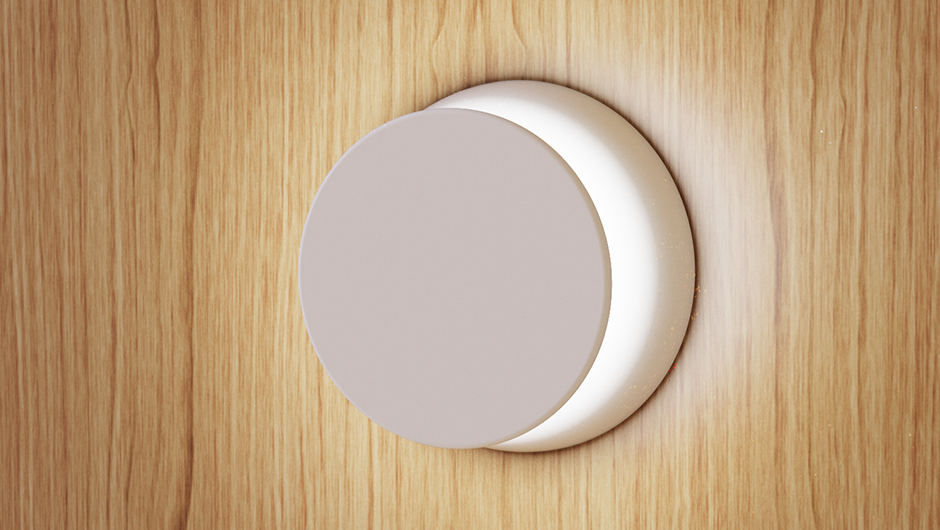

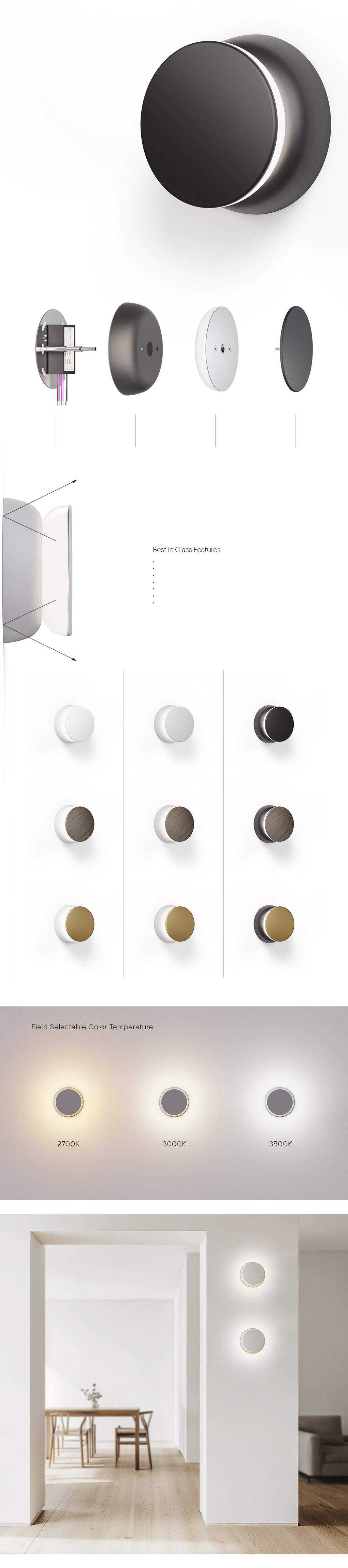

Compact LuminaireTotem Puck is the foundation of the Totem Wall Collection. It's compact yet powerful LED casts a soft burst of atmospheric light against the mounting surface.

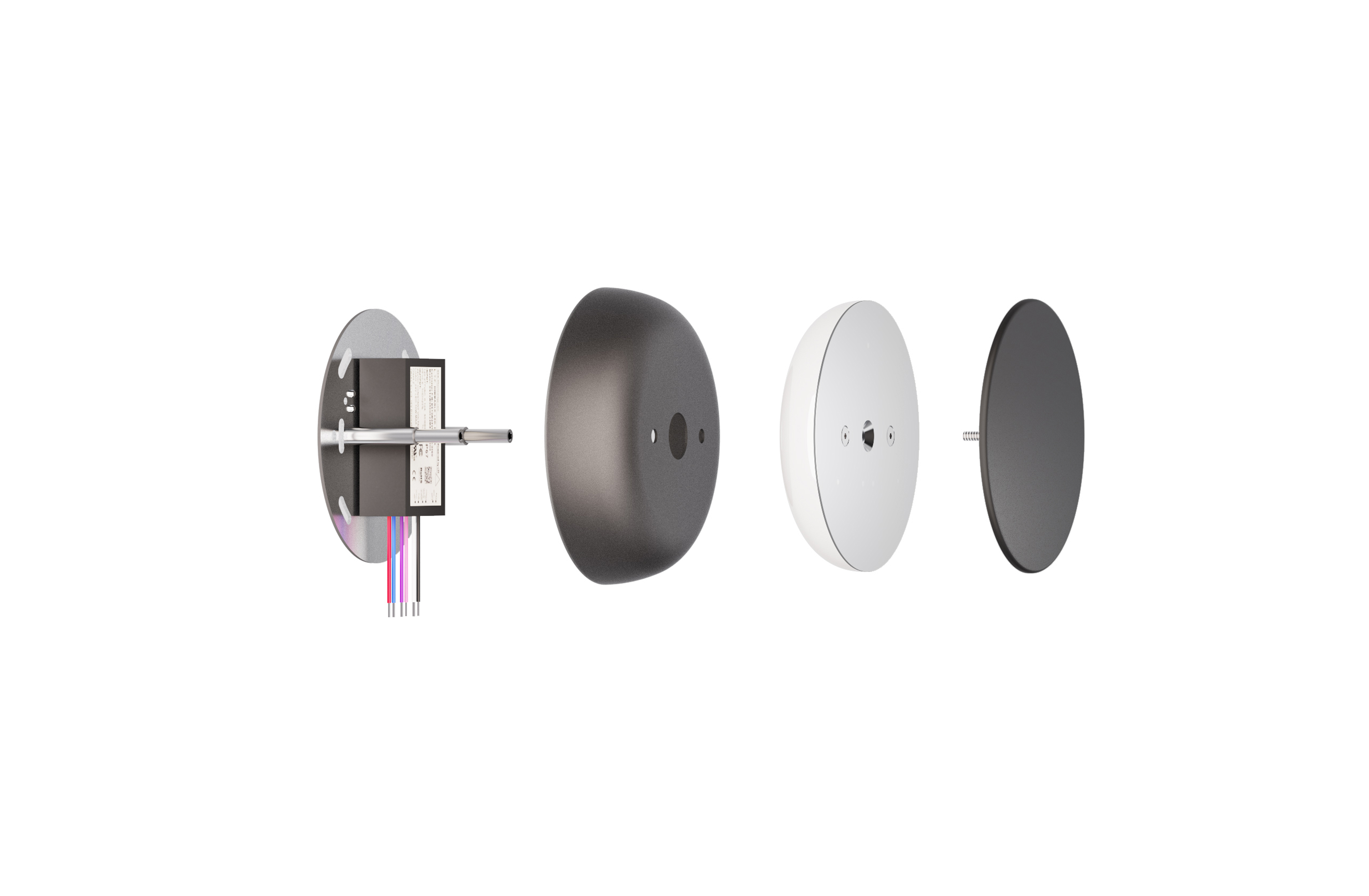

DRIVER

CANOPY

LED

FACEPLATE

ADA Compliant (low profile assembly)

IP44 Damp Rating

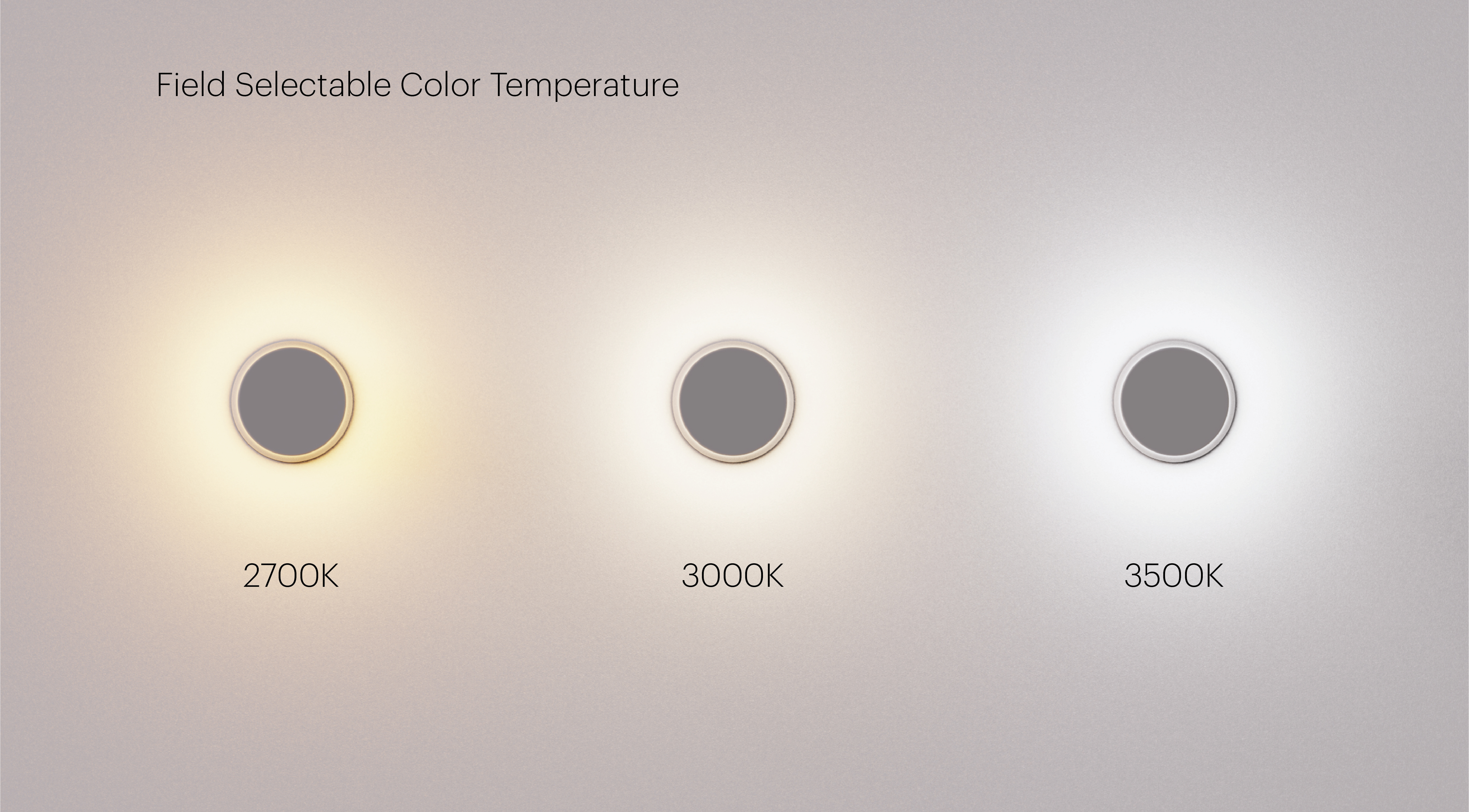

Field Selectable Color Temp. (2700K/3000K/3500K)CCT

Interchangeable Faceplate

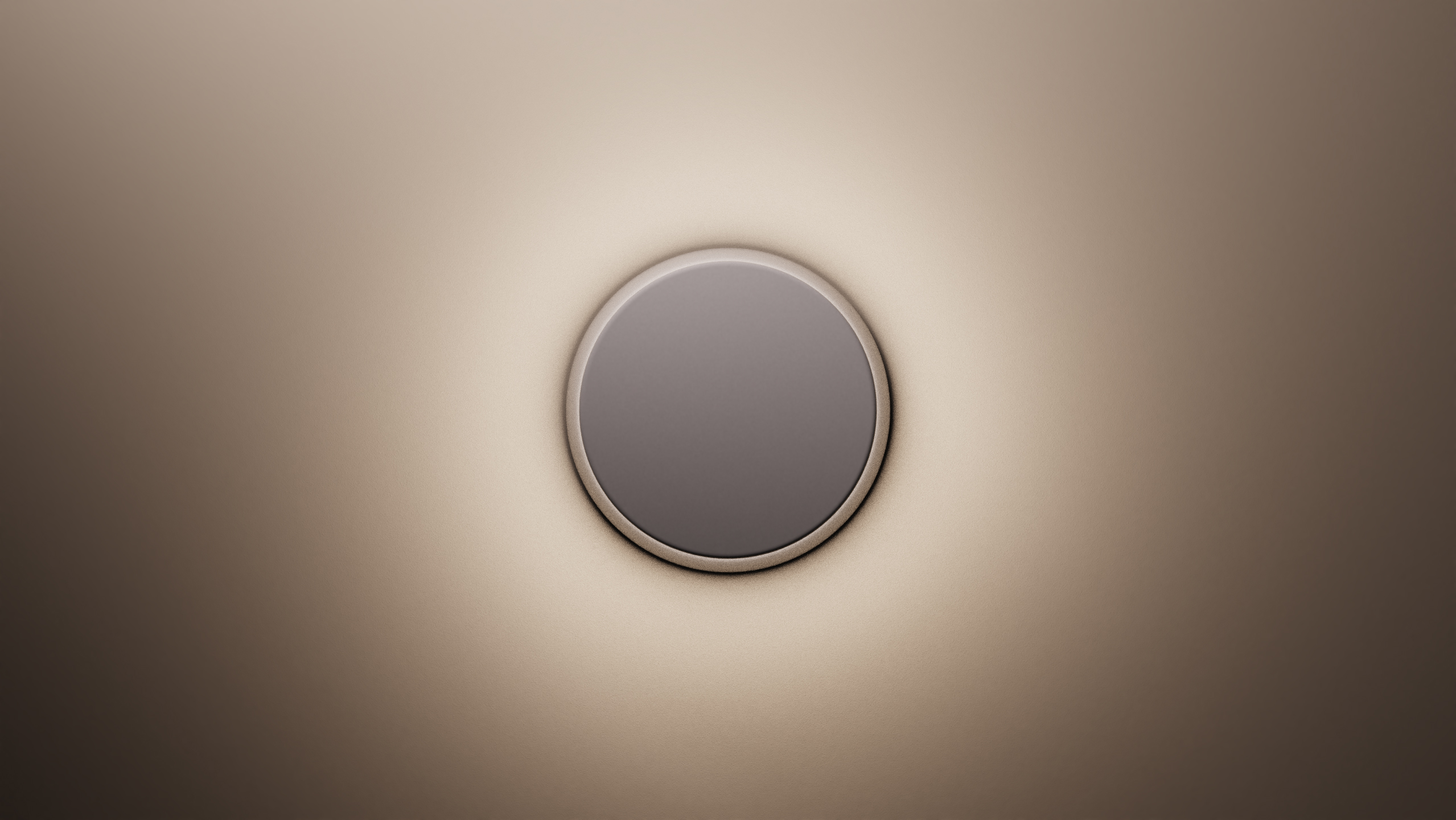

Glare-free Indirect Illumination

Fully Dimmable

Modular Assembly: Interchangeable Color and Finishes

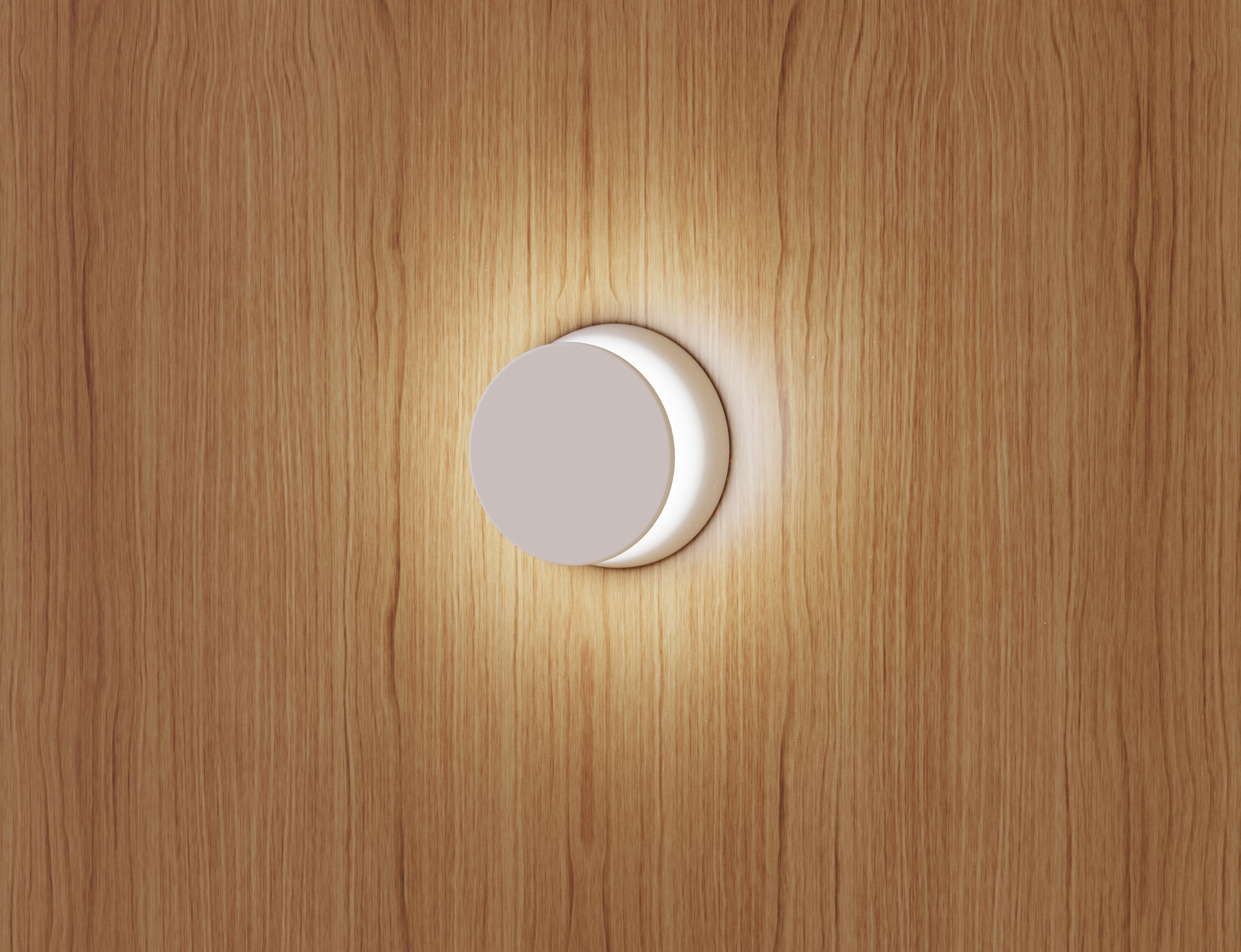

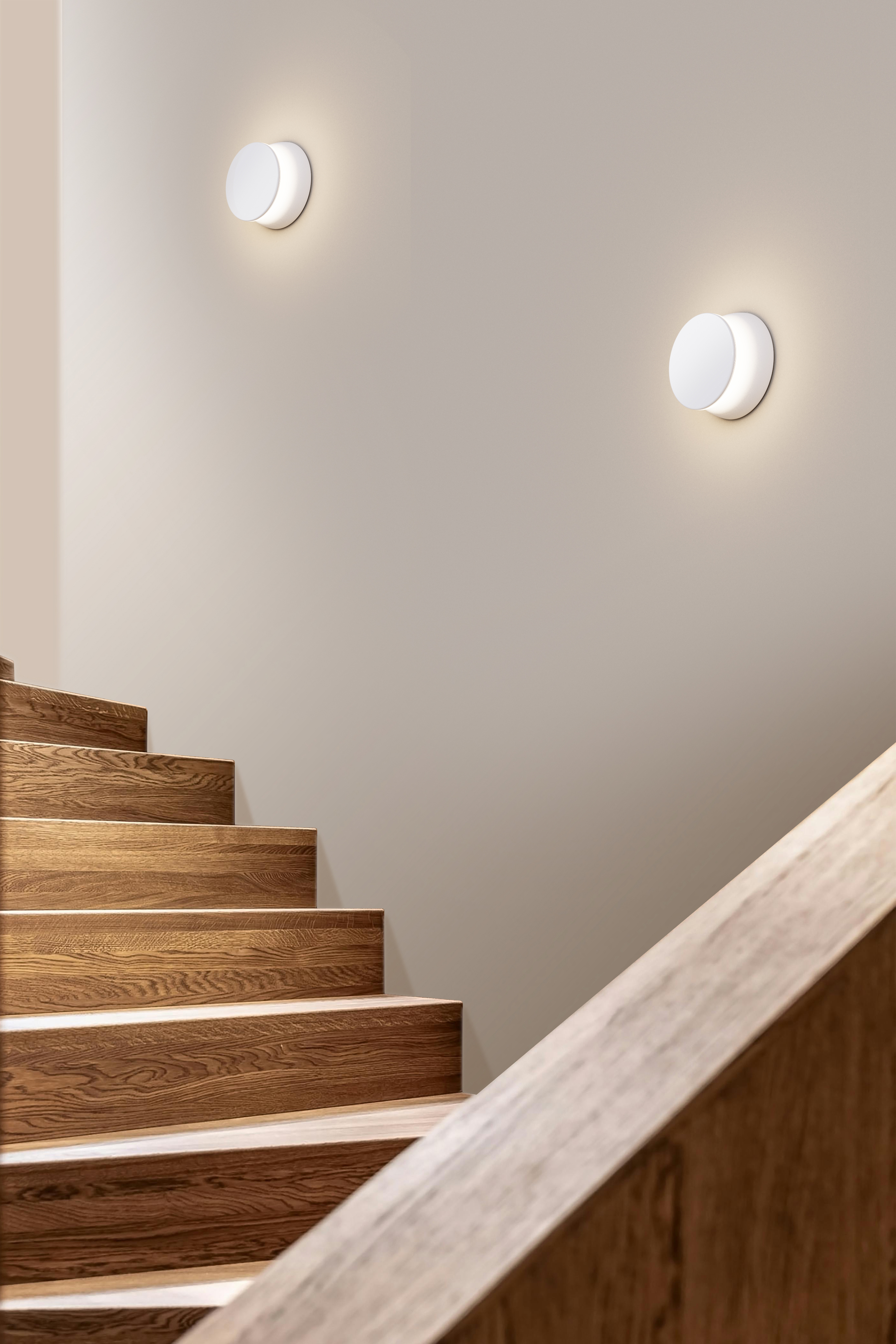

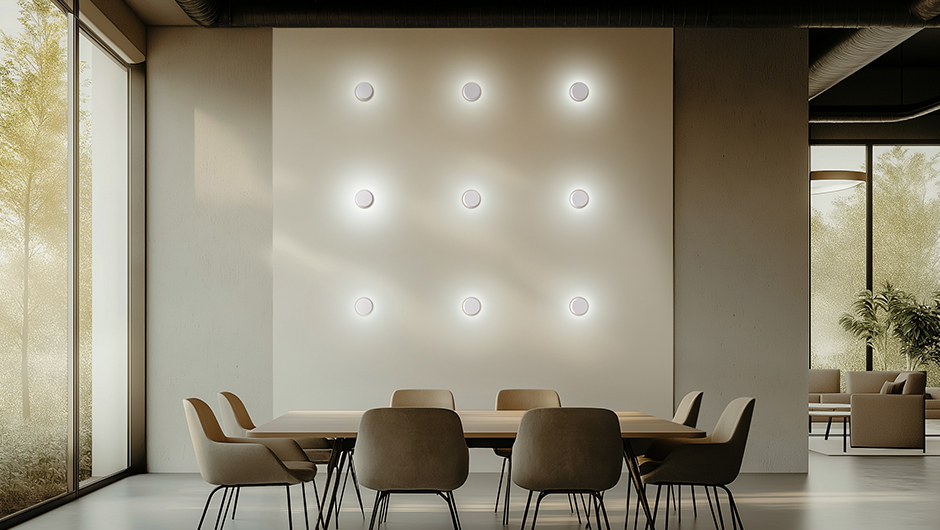

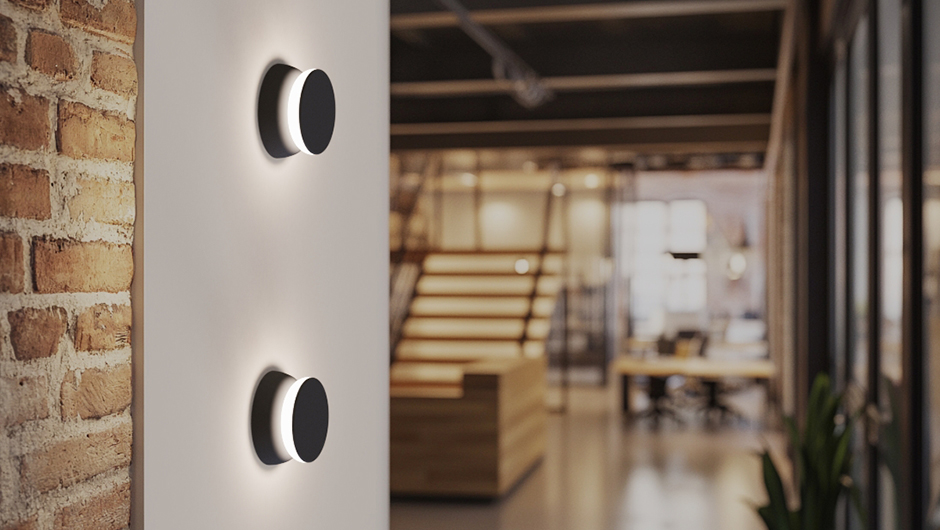

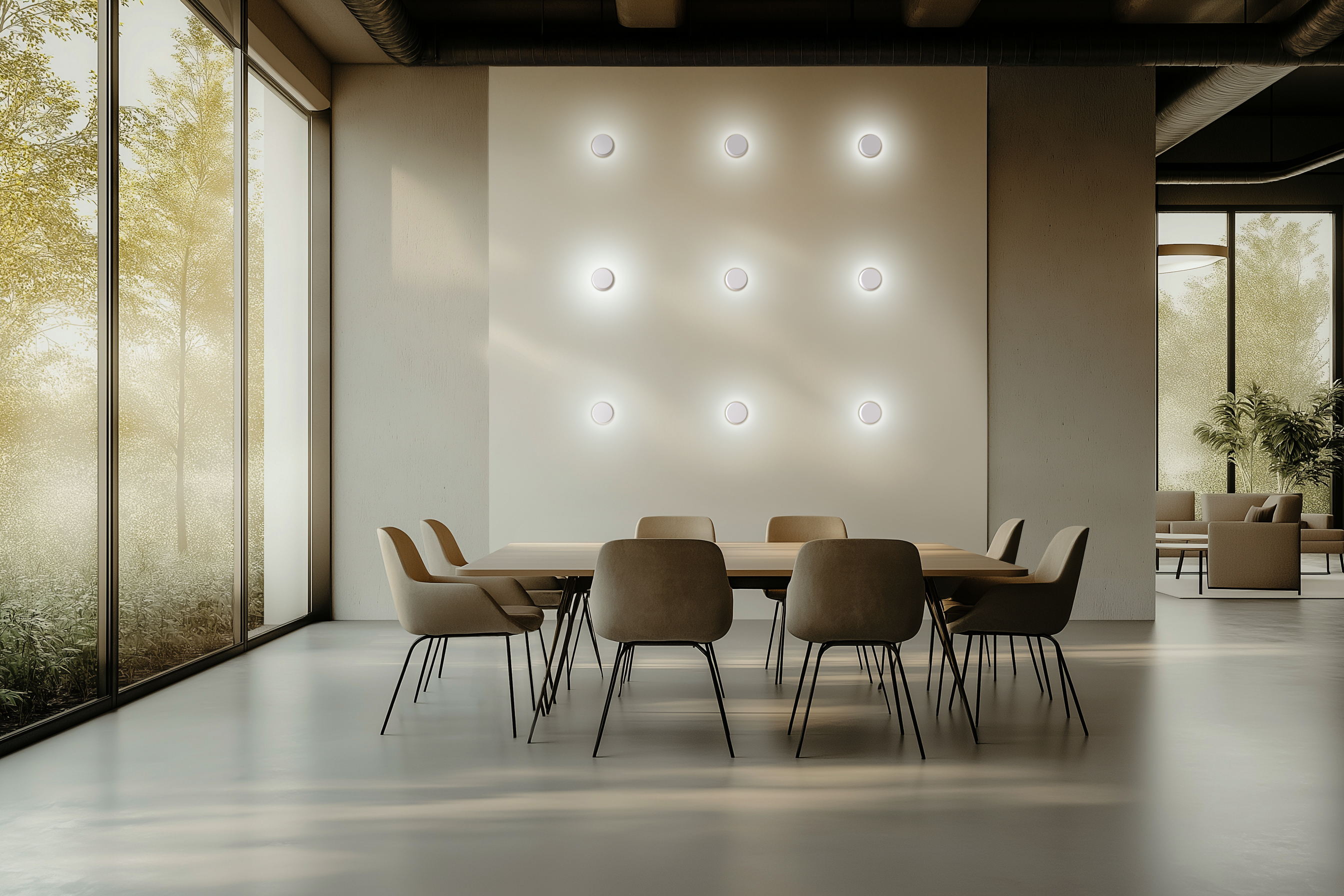

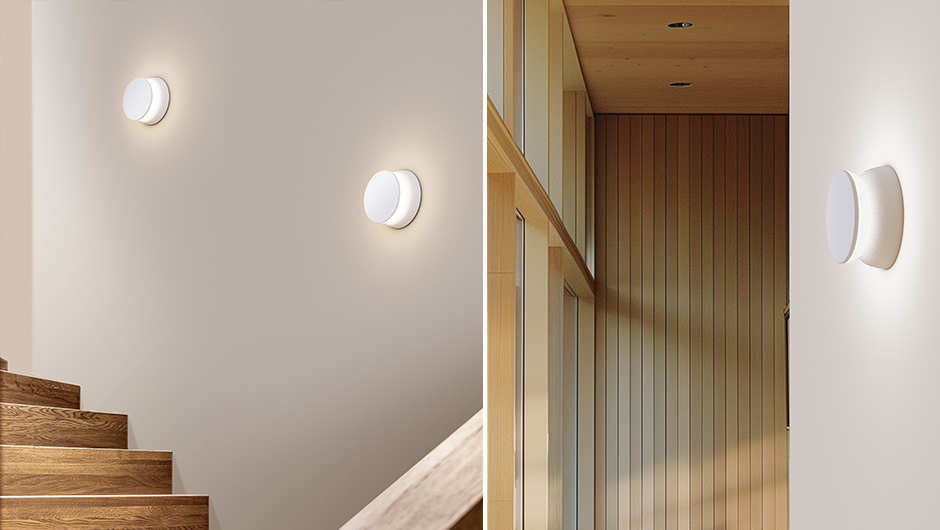

Spot of LightTotem Puck's minimal aesthetic lends well to patterns and arrays of multiple lamps within a space. Its indirect LED light module adds a warm ambiance to any space.

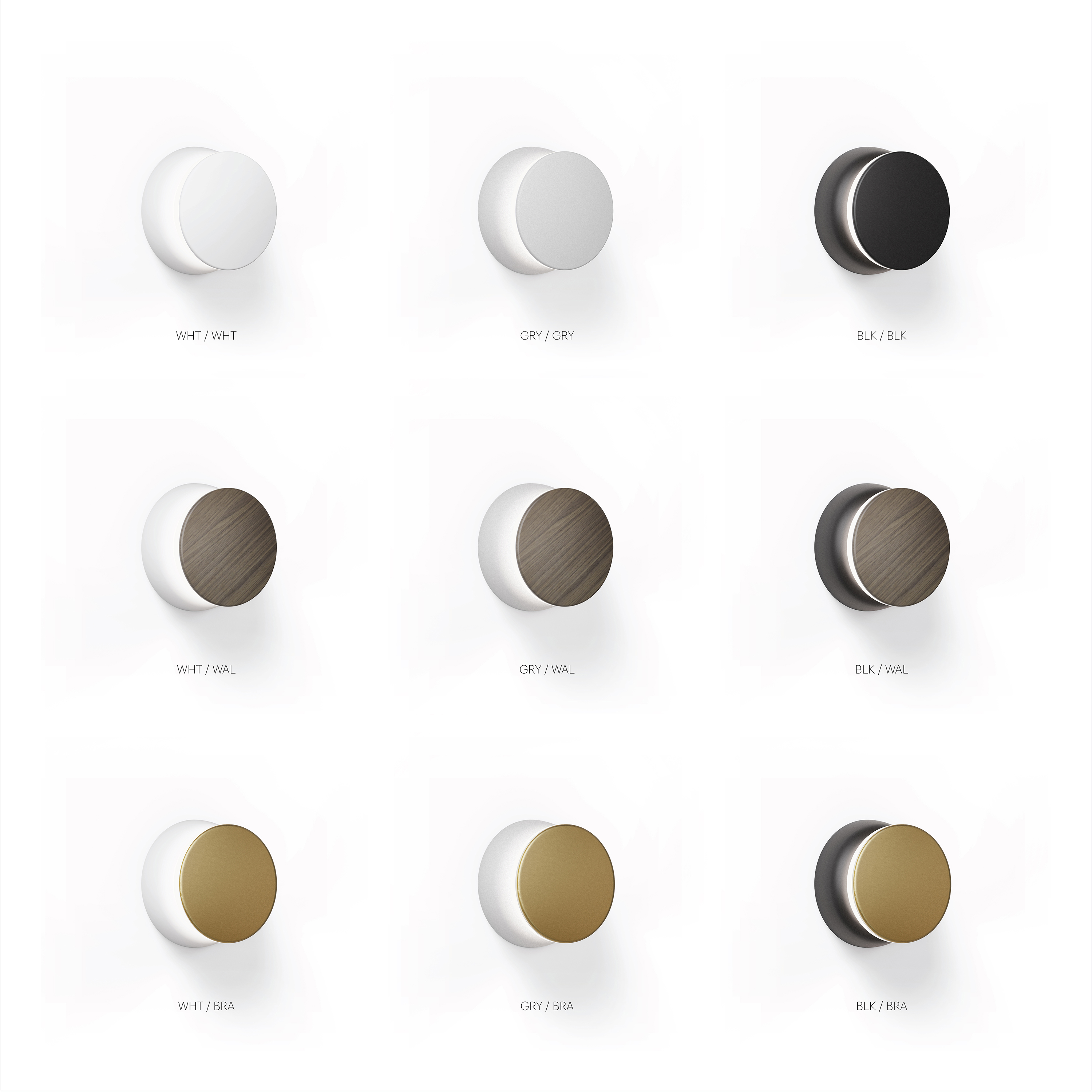

WHT / WHT

GRY / GRY

BLK / BLK

WHT / WAL

GRY / WAL

BLK / WAL

WHT / BRA

GRY / BRA

BLK / BRA




Designer

Pablo Studio
The Pablo Studio is a small group of makers and inventors with a diverse background in industrial design and craft, and a deep understanding of manufacturing, materials and technology.

  • Specifications: Totem Puck

    FINISHES

    (Canopy):

    Matte White
    Matte Grey
    Matte Black

    (Faceplate):
    Matte White
    Matte Grey
    Matte Black
    Brushed Brass
    Walnut Essence


    MATERIALS:
    Aluminum
    Steel
    PC Lens


    FEATURES:
    Field Selectable Color Temp.
    Fully dimmable
    Glare-free illumination

    SPECIFICATIONS:
    Voltage: 120V (100-277V 50/60Hz Available upon request)
    Power Consumption: 8W
    Color Temperature: 2700K or 3000K or 3500K CCT
    Luminosity: 500
    Luminaire Efficacy: 62.5 Lumens/Watt
    Color Rendition Index: 90 CRI
    ADA compliant
    IP Rating: IP44

    CERTIFICATIONS:
    ETL, CE


    .
