The Clamp Story

“Understated beauty and an uncompromising level of utility are key to the Pablo design philosophy,” says designer Dana Cannam on his inspiration for Clamp. “The opportunity to extend that sensitivity to a material as essential as wood was a natural transition.” Clamp continues Pablo’s tradition of offering simple, efficient pieces by combining two basic elements — wood and light — in a seemingly
oppositional pairing of the natural and the technological. While warm, North American hardwood composes its frame, the most sustainable, energy efficient LED technology comprises its light source. Designed for versatility and portability, the desk and freestanding models of Clamp include only three main components that enable infinite adjustment of its warm, diffused light.
.

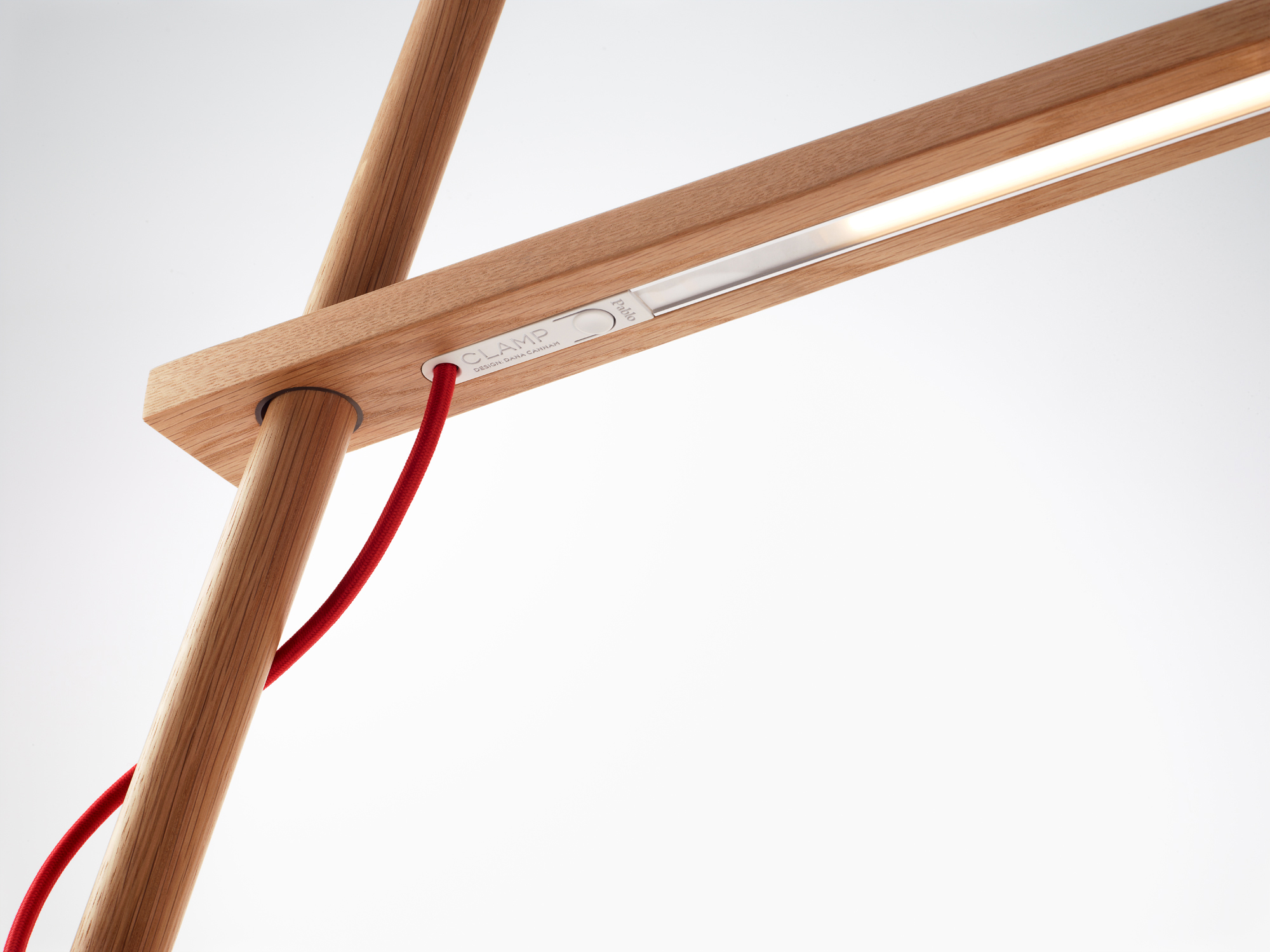

Unlimited adjustmentLamp arm combines an ultra-slim LED light source
with 360° rotation and up to 24" (61cm) of height
adjustment. Angled post allows for maximum reach
and directional light focus.

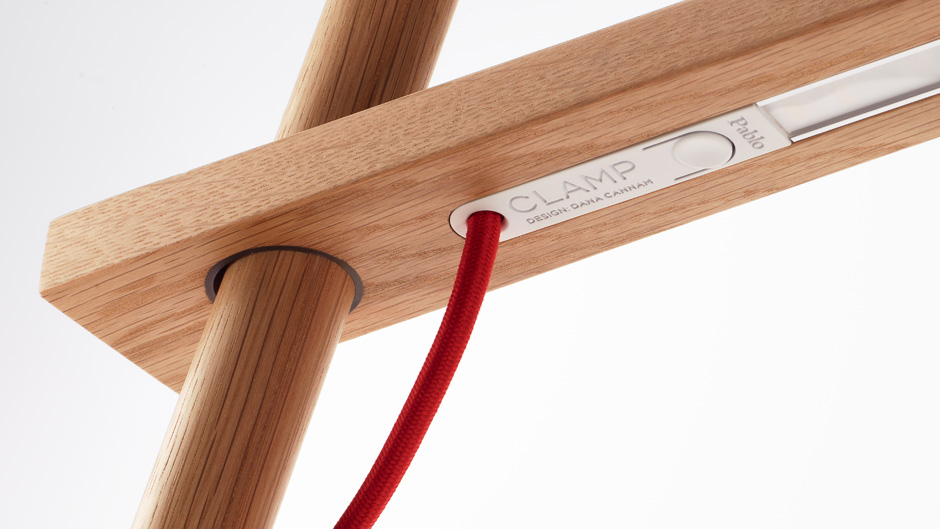

Optimal controlErgonomically positioned hi-low
switch
allows for optimal
light intensity.

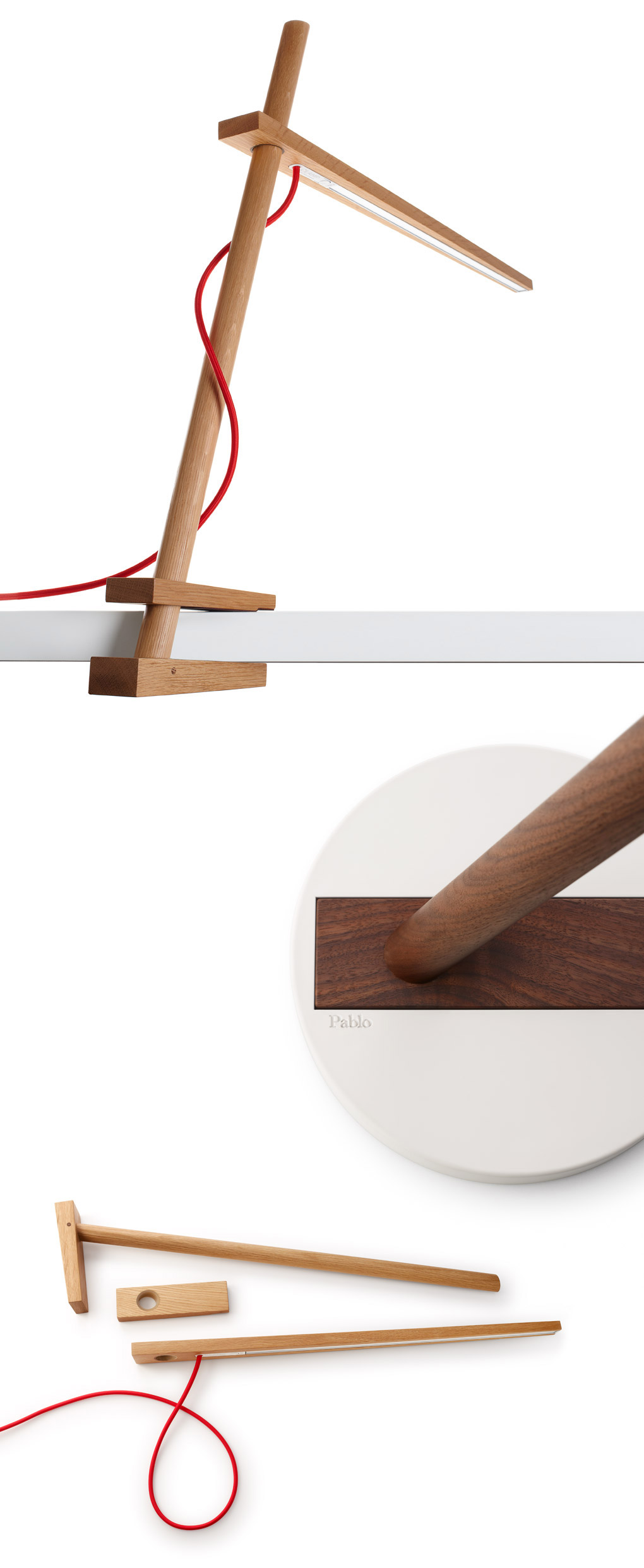

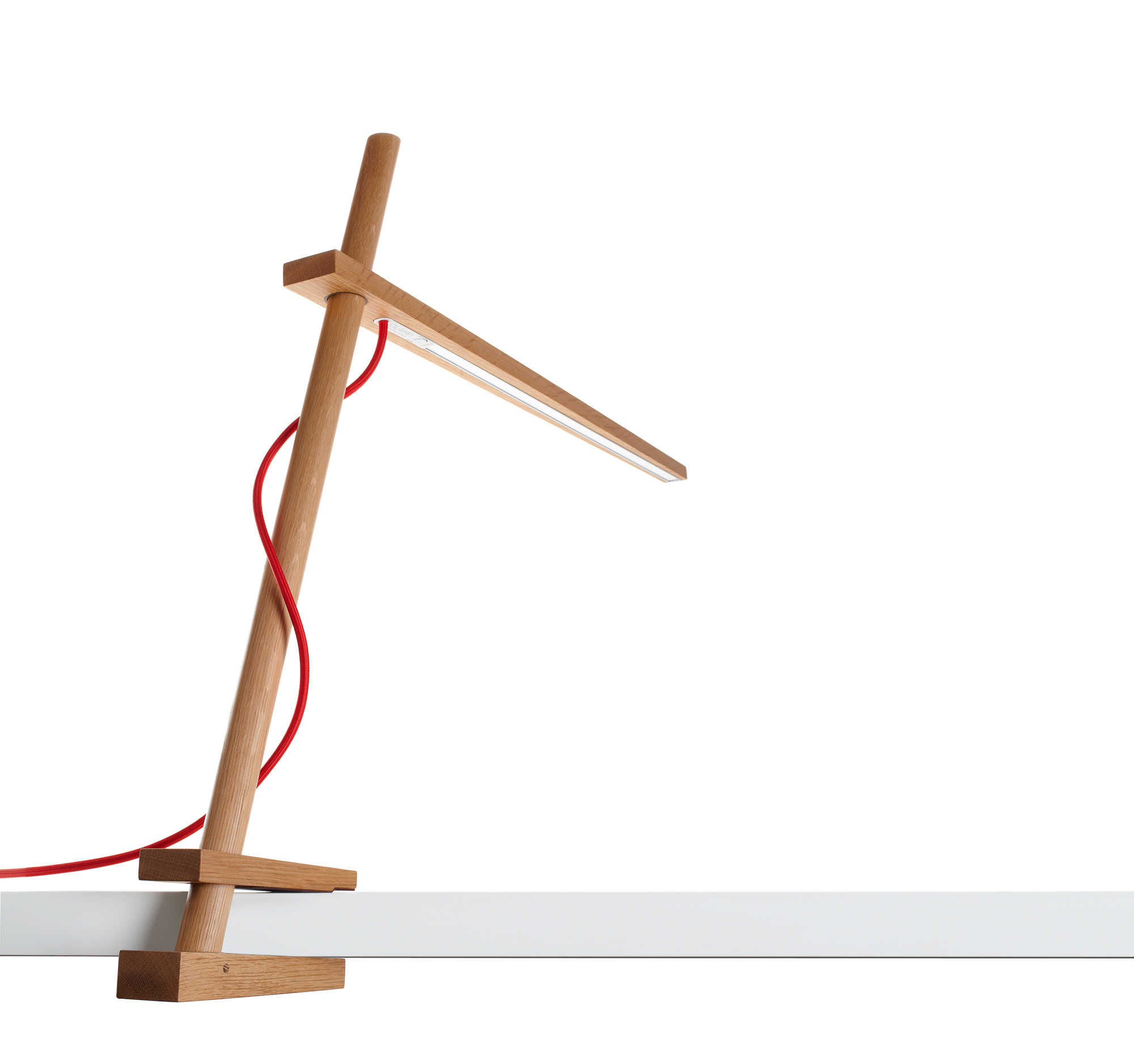

Clamp SystemUnique compression fit clamp system allows for attaching
to various table thicknesses.

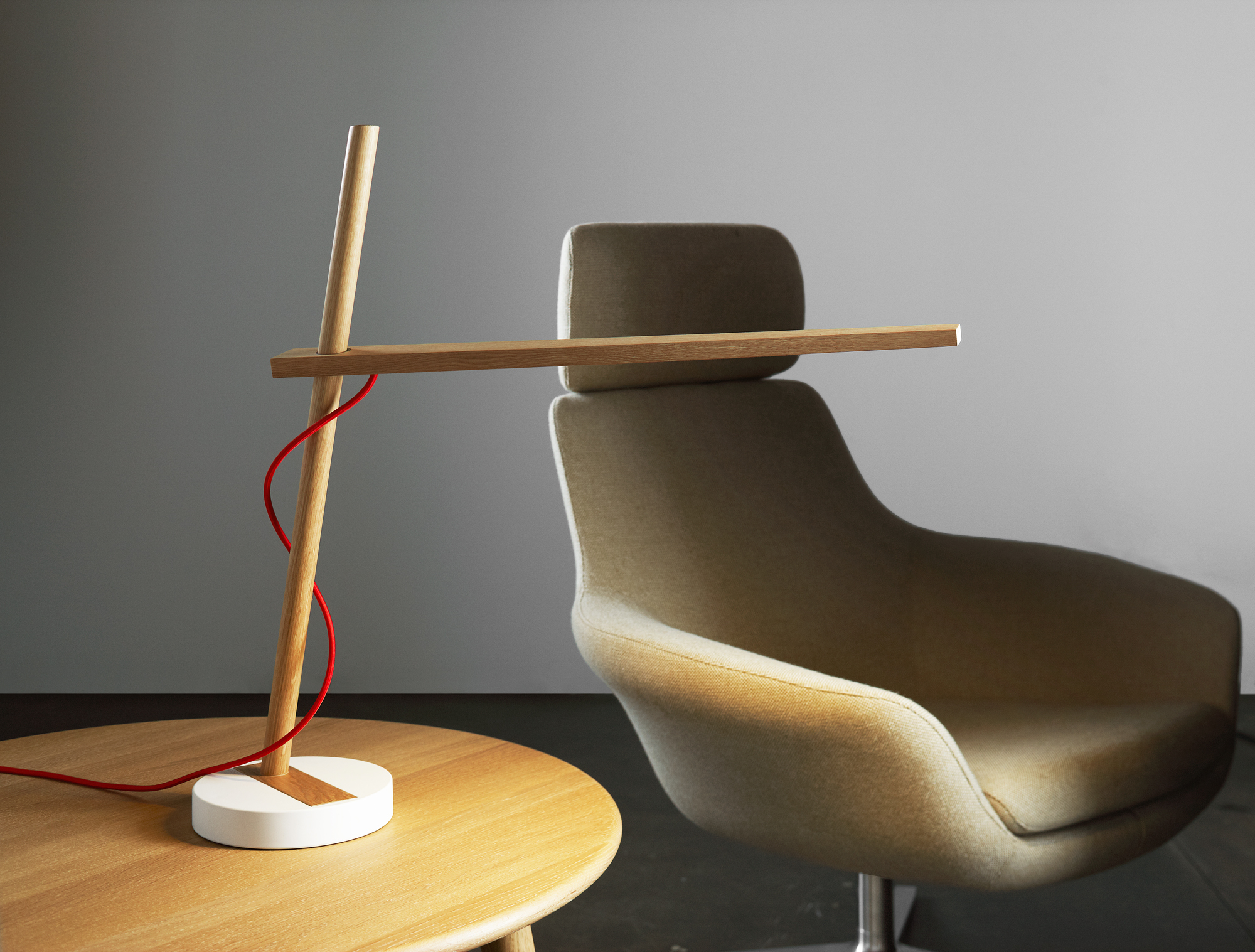

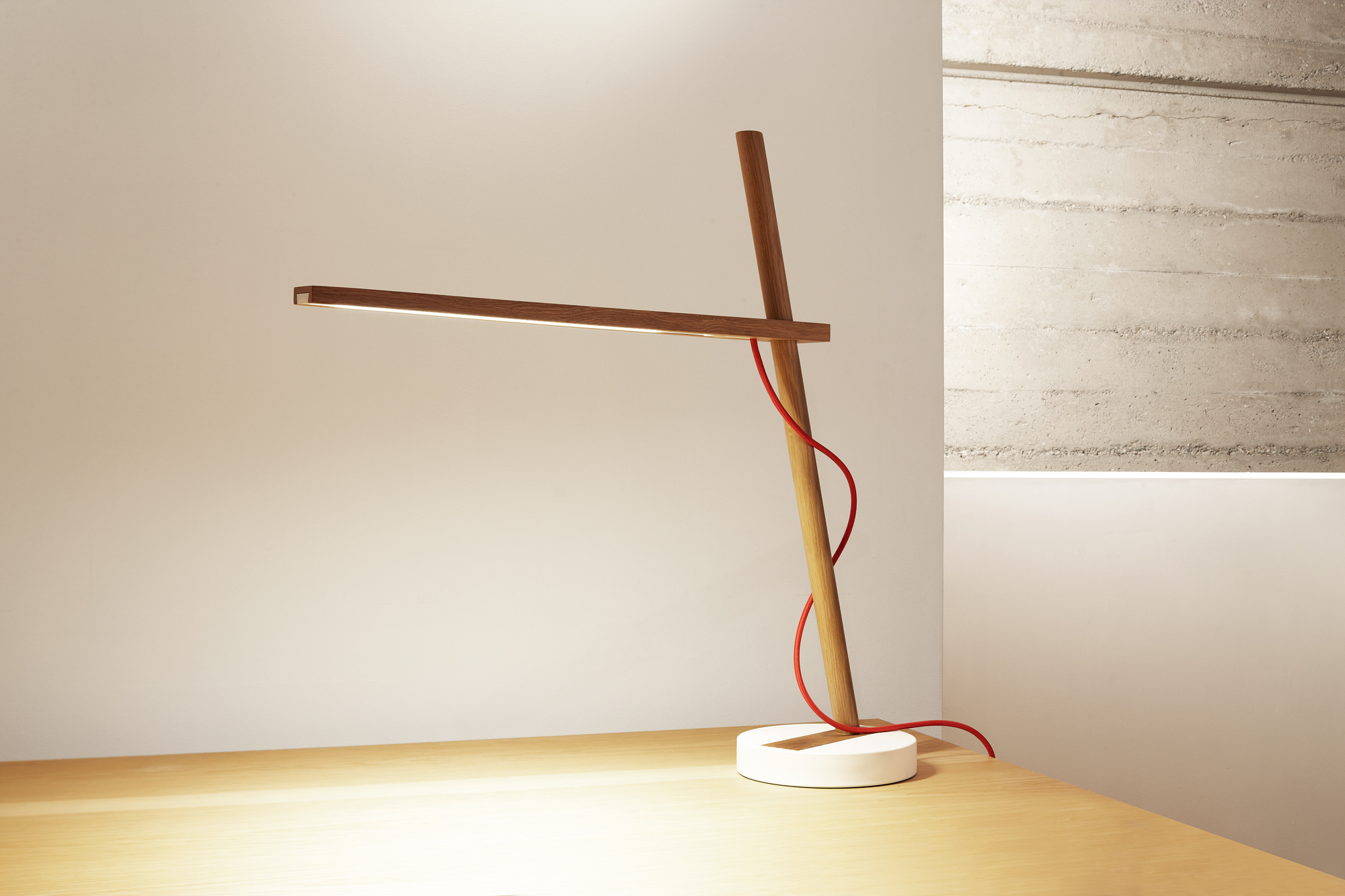

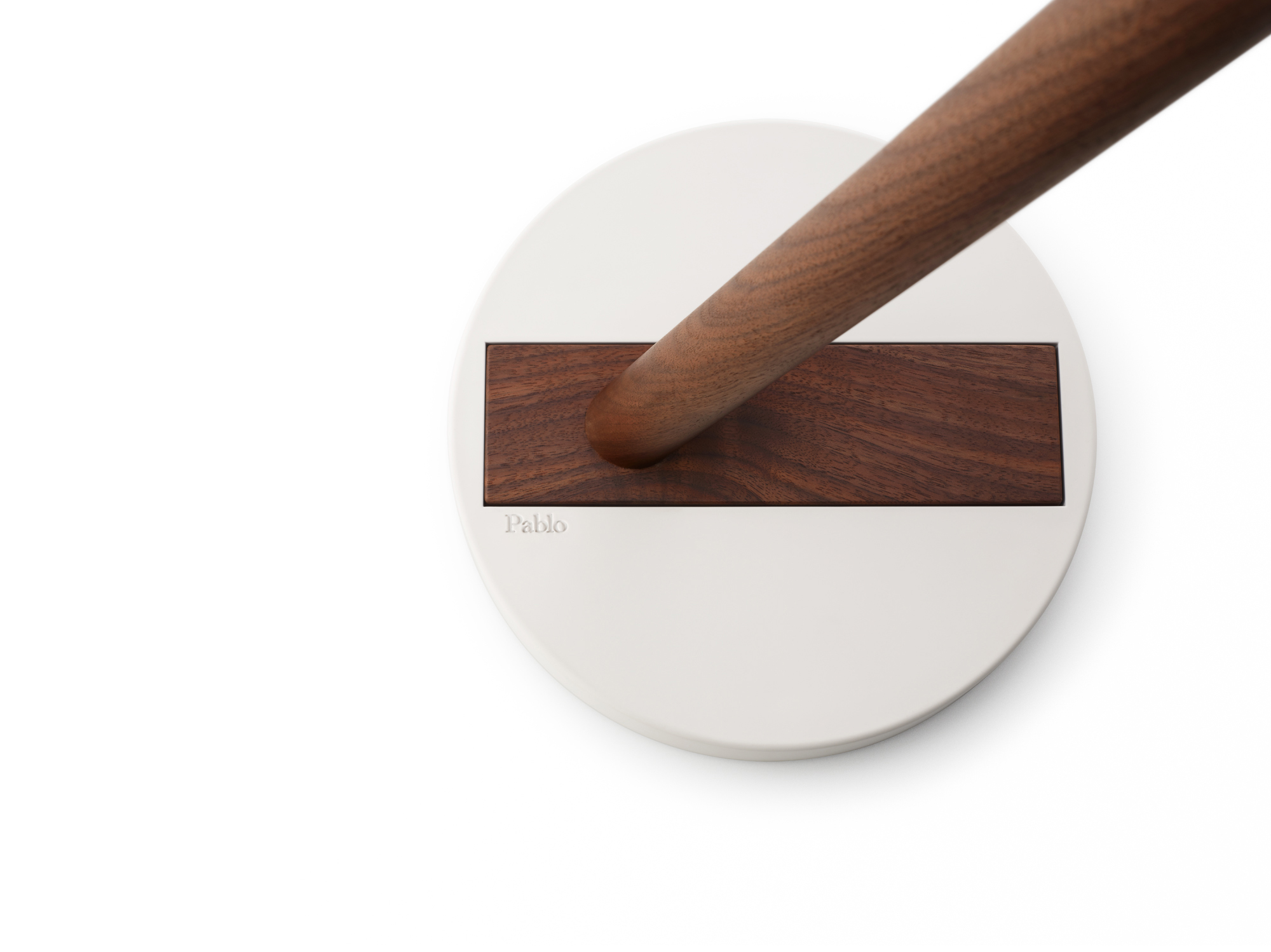

Freestanding BaseCompact base can be easily added to support
a wide
range of portable lighting applications.
Simply SustainableSelected from finest North American hardwoods, Clamp's
elemental design ships flat-packed, and provides up 50K
hours of illumination.



Video



Clamp is designed for
versatility and portability.

.

Sustainable

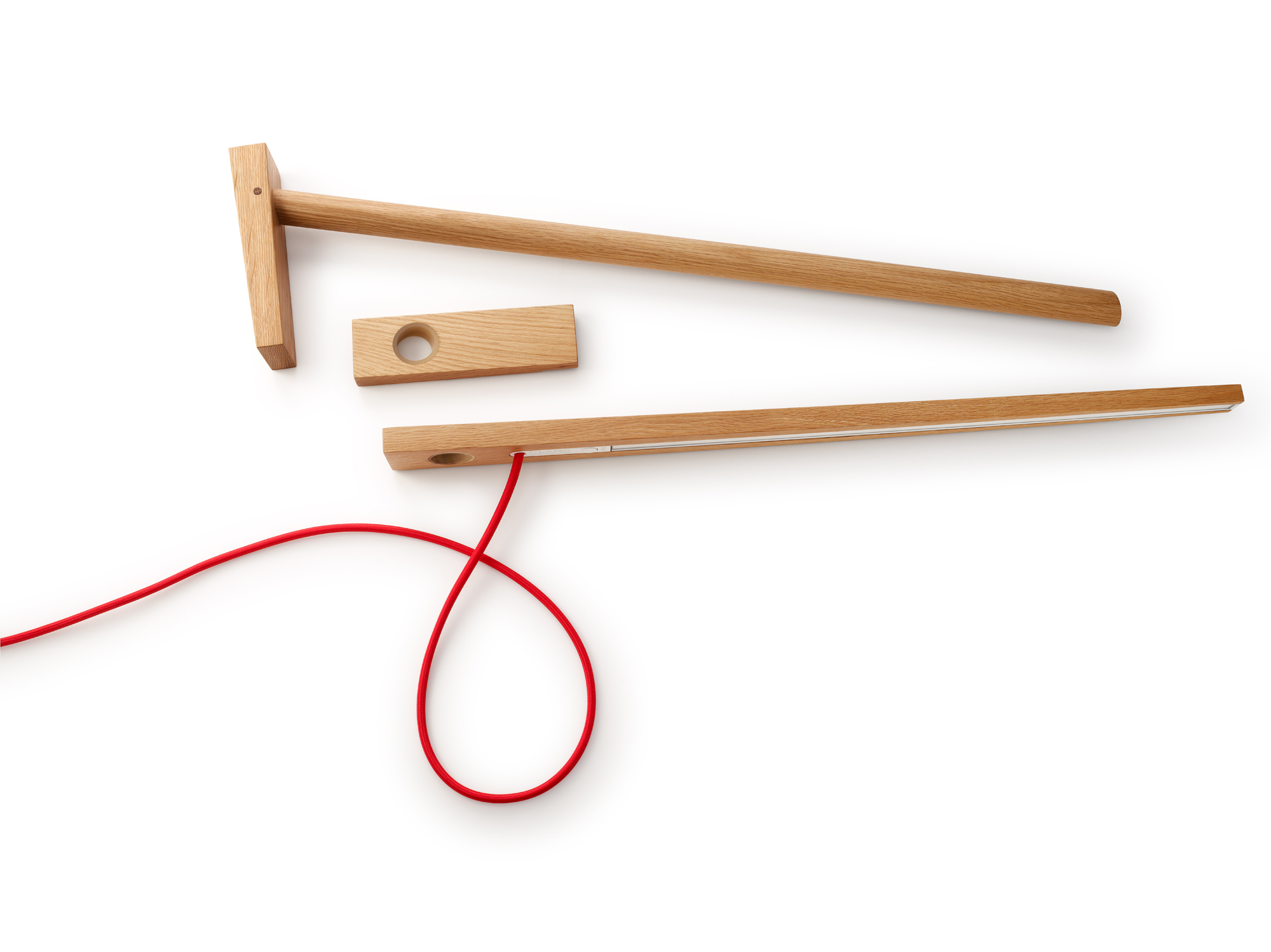

  • Ships flat-packed
  • Minimal use of materials
  • Contains no hazardous materials such as mercury
  • Lasts for 50K hours or 25 years of daily use
  • Designed for disassembly
  • Uses only 9W of power (90% more efficient than a comparable halogen light source, 40% more efficient than CFLs)
.

Designer

Dana Cannam
Cannam is a Canadian product and interaction designer based in The Netherlands. Interested in how the pragmatism of the traditional craftsman can create new design, he focuses on simplicity to spur technical innovations in physical products and electronic interfaces.

  • Specifications: Clamp

    FINISHES:
    White Oak / Red cord
    Walnut / Black cord
    Base Unit: Matte White

    MATERIALS:
    Wood lamp assembly
    Polyurethane bushings
    Polycarbonate lens
    Leather clamp pad
    Steel base weight (Clamp FS only)
    ABS cover (Clamp FS only)

    FEATURES:
    360° arm rotation
    Advanced LED array eliminates multiple shadows
    Hi-low dim control
    Ships flat-packed

    SPECIFICATIONS:
    Voltage: 120/220V 60Hz
    Power Consumption: 9W
    Color temperature: 3000K
    Luminosity: 485 Lumens
    Luminaire efficacy: 55 Lumens/Watt
    Color Rendition Index: 85 CRI
    50K hour lifespan
    Cord length: 8’ (244cm)
    Global multi-plug adapter available

    BULB TYPE:
    (108x) High output LED array

    CERTIFICATIONS:
    ETL, CE, PSE, RoHS

    .

  • Specifications: Clamp FS
